- Sleek, modern design and a remote control function to fit into your life and provide complete discretion
- Intuitive menu with coloured touchscreen handset for improved handling, wherever you are
- Pre-filled cartridge of insulin - no need to fill cartridges by hand
72 x 52 x 16 mm without adapter
Approximately 115 g (including battery, full cartridge and infusion set)
Pre-filled 1.6 ml cartridge
Accu-Chek Insight infusion sets with a proprietary adapter
Easy and intuitive for improved handling
- Pre-filled cartridges of insulin - no need to fill cartridges by hand
- Zoom function and coloured display so it is easier to read
- Simple on screen instructions for priming infusion sets and changing a cartridge
Safe and reliable to support diabetes management
- Various bolus options and the ability to run boluses in parallel to give you flexibility in managing your meals
- Very low basal rate to suit individual needs
- Fast occlusion detection for added reassurance
Discreet and personal to individually adapt to daily life
- Sleek and modern design for more comfortable wearing
- A variety of cannula and tubing lengths for flexible wearing of the pump
- Variety of carry cases for a personal touch
- 72 x 52 x 16 mm without adapter
- 84 x 52 x 19 mm with adapter
Approximately 115 g (including battery, full cartridge and infusion set)
38 x 15 mm without zoom button, 220 x 80 pixel
- Shock/scratch-resistant plastic
- Resistant to pharmaceuticals
- All edges rounded
- Backside metal
Operation: +5 °C to +37 °C (+41°F to +99 °F)
Operation: 20% to 90%
Operation: 50 to 106 kPa (500 to 1060 mbar)
- One 1.5-volt AAA Alkaline (LR03) or Lithium (FR06) battery
- Batteries should have a minimum capacity of 1200 mAh. Do not use carbon zinc or nickel cadmium (NiCd) batteries
Minimum = 0.02 U/h , Maximum = 25 U/h E.g. Below 0.19 U/h, delivery is close dependent. 0.19 U/h and above delivery every 3 mins
- Maximum bolus amount per delivery is 25 U
- Standard, Extended and Multiwave Boluses, are adjustable in increments of:
- 0.05 U (up to 2.0 U)
- 0.1 U (2-5 U)
- 0.2 U (5-10 U)
- 0.5 U (10-20 U)
- 1.0 U (20-25 U)
- Duration of Extended and Multiwave Boluses are adjustable in intervals of 15 minutes up to 24 hours
- Multiple boluses can run in parallel
- Adjustable in 10% increments, from 0 - 250%
- Duration is adjustable in 15 minute intervals, up to a maximum of 24 hours
- Last duration programmed is the default setting for the next Temporary Basal Rate
- Very slow = 3 U/min
- Slow = 6 U/min
- Standard = 12 U/min
- Moderate = 9 U/min
350 kPa (3500 bar)
≤ 0.5 U in case of failure of the pump it would give an alarm and go into the stop mode after an over or under delivery of max. 0.8 U (normative requirement)
160 U, Glass Cartridges (Pre-filled):
- Medium basal rate, 1.0 U/h: ≤ 2.2 h
- Minimum basal rate, 0.02 U/h: max 144 h due to tubing/cartridge change
There are two types of data storage capacities:
- Data with time and date are safely stored in memory for about 1 hour after the battery has been removed
- Other insulin pump settings and the event memory are saved, regardless of battery power level and period of time the insulin pump has been without power
Pre-filled 1.6 ml cartridge also available
Accu-Chek Insight infusion sets with a proprietary adapter
Bluetooth® wireless technology
IPX8 - Protected against the effects of temporary immersion in water under standardised conditions (1.3 m/4.3 ft for 60 minutes) ex-factory
- Alert system
- Beeps
- Information on the display
- Vibrations
- Dual microprocessors
- The Insulin pump is controlled by two microprocessors. The safety concept is based on one processor (supervisor processor) supervising the other (main processor)
- Whenever a defect or fault occurs in the main processor, it is identified by the supervising microprocessor. The motor is immediately switched off and an "Error E7: ELECTRONIC ERROR" occurs. Conversely, the main processor can also determine, at any time, whether the supervisor is working correctly
- The motor constitutes another important safety component. In combination with the main and supervisor processors, the brushless motor provides the best possible reliability and accuracy in insulin delivery
- Schöllkopf K et al. ‘The novel Accu-Chek® Insight insulin pump system – Step analysis of user-relevant routine tasks. Poster Session Diabetes Technology Meeting: 2013 Oct 31 – Nov 2: San Francisco, CA, USA.
- Cavan D et al, Use of insulin bolus advisor improves glycemic control in multiple daily injection (MDI) therapy patients with suboptimal glycemic control: First results from the ABACUS trial. Diabetes Care 2013; 36 (1): 3613-9.
- Barnard K et al. Use of an automated bolus calculator reduces fear of hypoglycemia and improves confidence in dosage accuracy in T1DM patients treated with multiple daily insulin injections. J Diabetes Sci Technol. 2011; 6(1): 144 – 9.
- Zisser H et al. Clinical performance of three bolus calculators in subjects with type 1 diabetes mellitus: A head-to-head-to-head comparison. Diabetes Technol Ther. 2010; 12(12): 955 – 61.

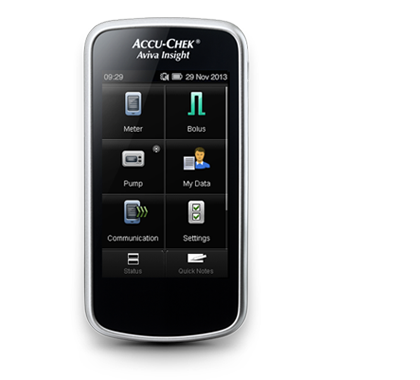

52 x 105 x 19 mm
Colour, dot matrix, touchscreen
Easy and intuitive for improved handling
- Simple on screen instructions for easy navigation
- Full colour display with resistive touchscreen for a modern feel
Safe and reliable to support diabetes management
- Proven bolus advisor (1 – 4) to help improve your glycaemic control
- Multiple reminders and warnings to give you peace of mind
Discreet and personal to individually adapt to daily life
- Full remote control of the pump via the handset - no need to get the pump out
- Personalised bolus advice adapted to your needs
- Electronic diary with full colour reports and graphs for data management on the go
52 x 105 x 19 mm
Approximately 110g
Colour, dot matrix, touchscreen
- Auto-on with correct strip insertion
- Auto-off after removing strip (2 minutes)
- Auto-off after 2 minutes if not used
See Accu-Chek Aviva test strip package inserts
–10 oC - 50 oC (14 oF - 122 oF)
10% to 90%
2000 diary records
Handheld
USB cable for downloading
- 1 custom lithium-ion rechargeable battery
- Power adapter: PHIHONG switching power supply Model PSC03R-050
Under standard usage, battery life lasts 3 days on average (based on 7 bG tests, bolus adjustments and total on time approximately 52 minutes)
Electrochemical
Universal Code Key
- Bluetooth used is ISM 2.4 GHz communication channel
- The handset and the pump can communicate within a 2 metre range
Test average calculations are offered for 7/14/30/60/90 day intervals
- On-board reports and graphs
- Logbook
- Trend graph
- Target report
- Standard week
- Standard day
- Downloading
- Uploading
- Up to 8 time blocks
- Entry for health events (e.g. exercise, stress, illness, etc.)
- Event-based reminders (after low blood glucose, after high blood glucose and after meal)
- Alarms (up to 8)
- Date/appointment reminders (e.g. doctor visit, lab visit, infusion set change)
- Medication reminders (up to 5)
- Vibrate and beep feature (one must be on at all times)
- 10 different sounds possible for reminders
- 12-hr or 24-hr clock
- Hyper and hypo warning limits (beep and/or vibrate)
- Background (dark or light)
- Backlight (low, medium or high)
- Key lock
- Schöllkopf K et al. ‘The novel Accu-Chek® Insight insulin pump system – Step analysis of user-relevant routine tasks. Poster Session Diabetes Technology Meeting: 2013 Oct 31 – Nov 2: San Francisco, CA, USA.
- Cavan D et al, Use of insulin bolus advisor improves glycemic control in multiple daily injection (MDI) therapy patients with suboptimal glycemic control: First results from the ABACUS trial. Diabetes Care 2013; 36 (1): 3613-9.
- Barnard K et al. Use of an automated bolus calculator reduces fear of hypoglycemia and improves confidence in dosage accuracy in T1DM patients treated with multiple daily insulin injections. J Diabetes Sci Technol. 2011; 6(1): 144 – 9.
- Zisser H et al. Clinical performance of three bolus calculators in subjects with type 1 diabetes mellitus: A head-to-head-to-head comparison. Diabetes Technol Ther. 2010; 12(12): 955 – 61.
